Description
Features
- Spiral cutterhead with triple V-belt drive
- 2-speed chain-driven automatic feed rollers
- Hardened anti-kickback fingers
- Precision-ground cast-iron table and extension wings
- Locking table
- Magnetic switch overload protection
- Ball bearing return rollers
- Depth scales in both inch and metric
- Pedestal-mounted control panel
- Motor: 3 HP, 240V, 15A, single-phase
- Maximum cutting width: 15″
- Maximum cutting height: 6″
- Minimum stock thickness: 3/16″
- Minimum stock length: 6″
- Maximum depth of cut: 1/8″
- Feed rate: 16 FPM and 20 FPM
- Cutterhead diameter: 3″
- Cutterhead inserts: 52
- Cutterhead flutes: 4
- Infeed rollers: solid serrated steel
- Outfeed rollers: knurled steel
- Table size with extension wings: 15″ x 48″
- Dust port: 4″
- Approximate shipping weight: 581 lbs.
- CSA certified
What’s in The Box

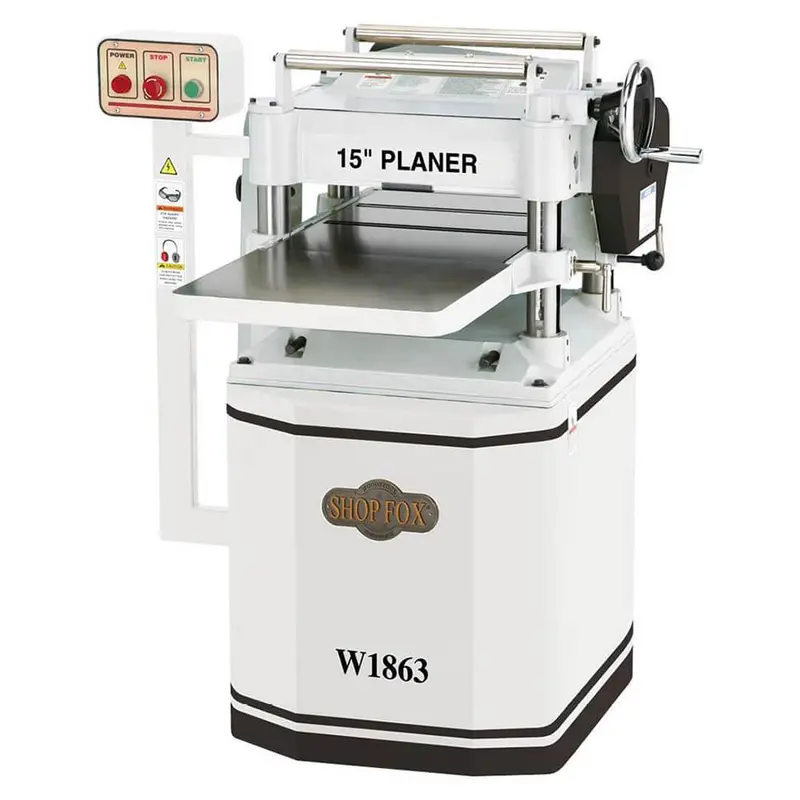

- 15-Inch Stationary Planer w/ Spiral Cutterhead
- Owner’s Manual
Warranty
- 2 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| Sku | W1863 |
| Brand | Shop Fox |
| Horsepower | 3 Hp |
| Voltage | 240V |
| Amperage | 15A |
| Phase | Single |
| Max. Cutting Width | 15 in. |
| Max. Cutting Height | 6 in. |
| Min. Stock Thickness | 3/16 in. |
| Min. Stock Length | 6 in. |
| Max. Depth of Cut | 1/8 in. |
| Feed Rate | 16 Fpm and 20 Fpm |
| Cutterhead Diamter | 3 in. |
| Cutterhead Inserts | 52 |
| Cutterhead Flutes | 4 |
| Table Size w/ Extension Wings | 15 in. x 48 in. |
| Dust Port | 4 in. |
| Product Weight | 581 lbs. |
