Description
Features
- Cast iron head
- Cast iron table with extensions creates a big 55-1/2″ x 20″ working area
- Chip breaker and pressure bar assists to reduce snipe
- Chrome-plated, ergonomic handwheel makes adjustments smooth and easy

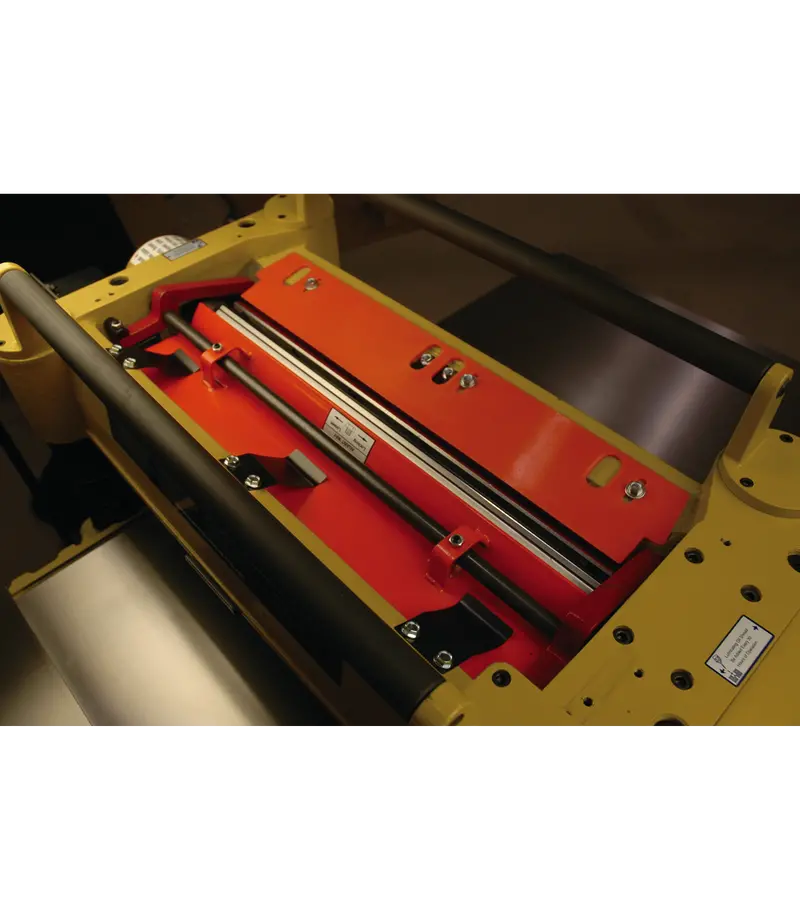

- Feed rollers and cutterhead supported by full cast iron head assembly
- Feed rollers and cutterhead supported by full cast iron head assembly for rigidity
- Fully enclosed base cabinet with integrated casters for shop mobility
- Serrated steel infeed roller and smooth steel outfeed roller allows for 1/8″ maximum depth of cut and trouble-free operation
- The helical cutterhead with 100 four-sided carbide knife inserts provides smoother, quieter cutting and finer finish than conventional systems
- The helical cutterhead with 100 four-sided carbide knife inserts provides smoother, quieter cutting and finer finish than conventional systems
What’s in The Box

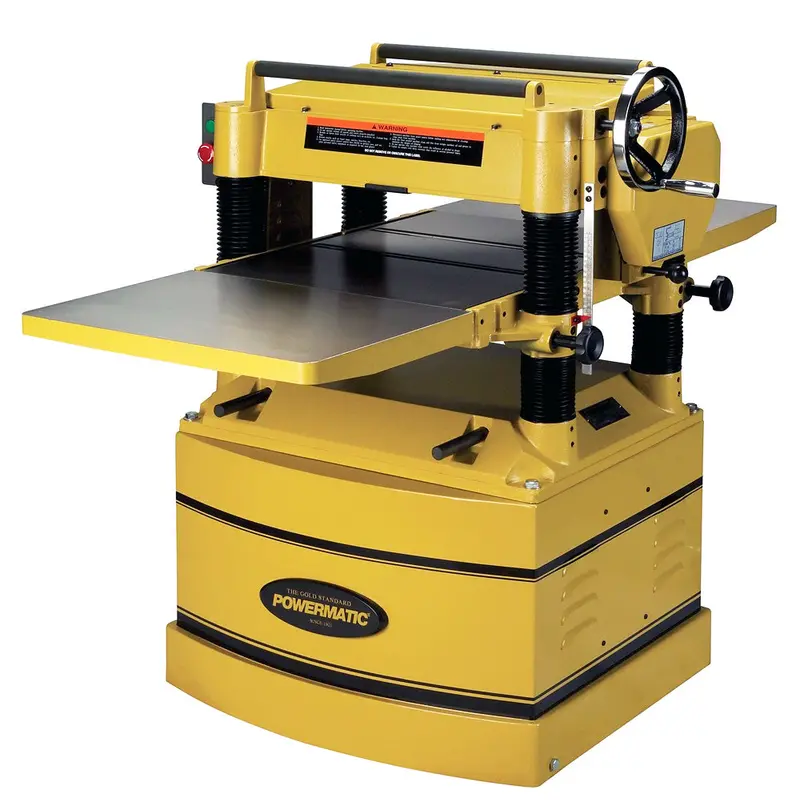

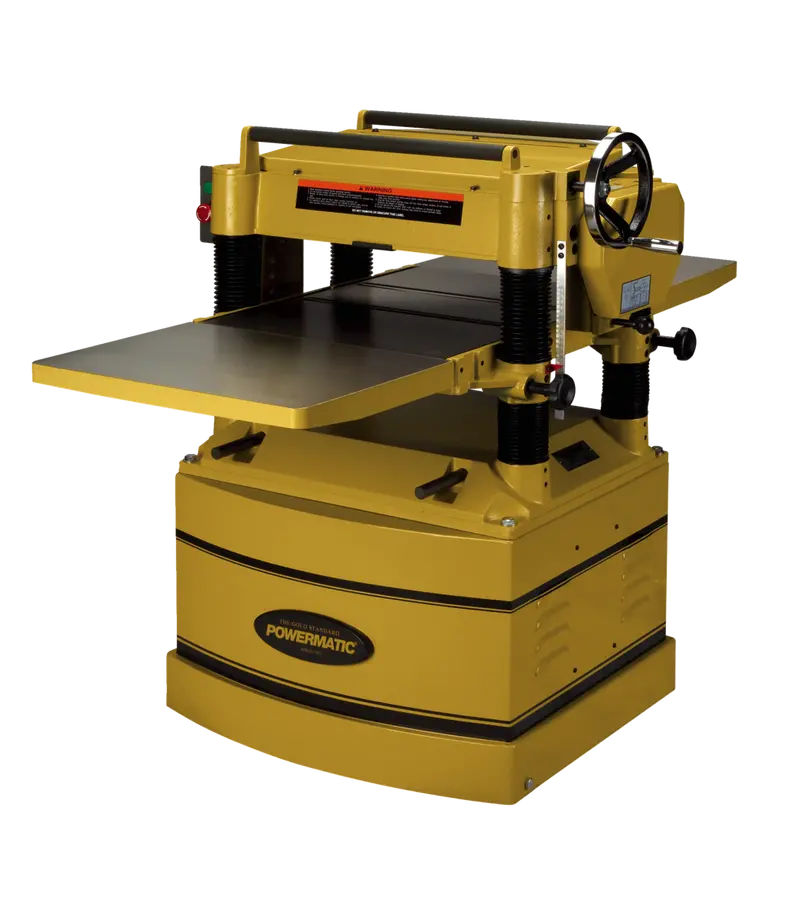

- (1) 209HH, 20-Inch Planer, Helical Cutterhead, 5 HP, 3Ph 230/460V
- Owner’s Manual
Warranty
- 5 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| SKU | PM9-1791316-4 |
|---|---|
| Brand | Powermatic |
| Cuts Per Minute | 20,000 |
| Cutterhead Diameter (In.) | 3-3/16 |
| Cutterhead Speed (RPM) | 5000.0000 |
| Dust Collection Minimum CFM Required (CFM) | 900 |
| Dust Port Outside Diameter (In.) | 5 |
| Feed Rate (FPM) | 24/31 |
| Maximum Depth of Cut (In.) | 3/32 |
| Maximum Full Width Depth of Cut (In.) | 3/32 |
| Maximum Planing Thickness (In.) | 8 |
| Maximum Planing Width (In.) | 20 |
| Minimum Planing Length (In.) | 6-3/4 |
| Model Number | 209HH |
| Motor Phase | 3 |
| Motor Power (HP) | 5 |
| Motor Voltage (V.) | 230/460 |
| Prewired Voltage (V.) | 230 |
| Prop 65 | Cancer and Reproductive Harm |
| Style (Type) | Floor |
| Table Size (L x W) (In.) | 25-3/4 x 20 |
| Table Support | 4 Column |
| Type of Cutterhead | HELICAL |
| Warranty | 5 Year |
| Gross Weight | 840.0 |
| Net Weight | 800.0 |
