#806 Short Centerset Plastic Couplers with Plastic Short Gearboxes – Black – O Scale
This industry leading coupler features Original Style Head Short Centerset Plastic Couplers, and #850 O Scale centering spring and comes complete with Short Plastic Gearboxes and lids. The #743 Metal Coupler may be mounted with the included Short Plastic Gearbox (#806 type).
Package Includes:
- (2) Each #806 Original Style Plastic Couplers – Short Centerset Shank
- (2) Each Short Plastic Gearboxes & lids (#806 type)
- (3) Each #850 O Scale Centering Springs
It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.
- Simple Drop in Design
- Trouble Free Operation
- Compatible with All Kadee® O-Scale Couplers
- World-Renowned Quality & Performance
- They just Last & Last & Last…
#806 Plastic Coupler Features:
| Material | – Plastic |
| Shank Length | – Short (47/64″) (Knuckle pulling face to center hole of Draft Gearbox) |
| Coupler Offset | – Centerset |
| Centering Spring | – #850 O Scale Centering Springs |
| Knuckle Spring | – #845 O Scale Knuckle Springs |
| Head | – Original Style Head |
| Works In Place of | – #743 O Scale Short Centerset Shank Couplers |
| Works With | – #806 type Draft Gearboxes |
Plastic Short Draft Gearboxes & Lids Features (#806 type):
| Material | – Plastic |
| Dimensions | – 17/32″L x 1/2″W x 7/32″H |
| Works With | – #743, & #806 Couplers |

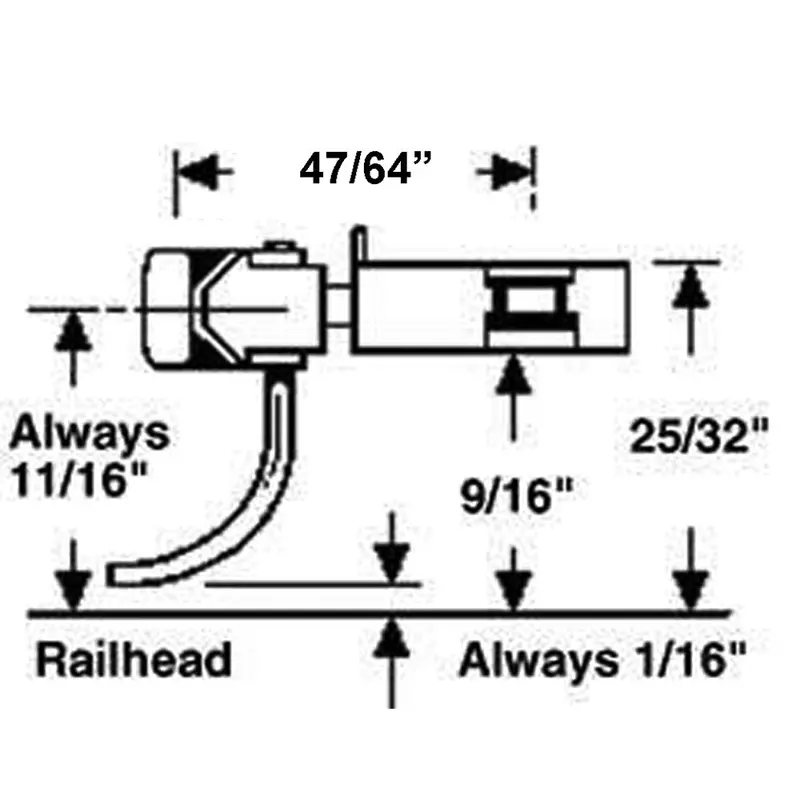

Mounting Specifications:
| Mounting Height | – 25/32″ |
| Centerline | – 1 1/16″ |
| Trip Pin Height | – 1/16″ |
| Mounting Holes | – 2-56 Insulated Screws are the most commonly used. (Screw length will vary) |
