Description
#9 HO Scale Metal Couplers with Gearboxes – Medium (9/32″) Centerset Shank – For Early Tyco Metal Trucks & Craftsman Kits
Truck Talgo Mount Coupler for Early Tyco Metal Trucks & Craftsman Kits
Metal Coupler with insulated Draft Gear Box and Lid, bronze Centering Spring and side and smaller center screw mounting hole used for truck mounting situations, similar to NO.5® Coupler.
Package Includes:
- (2) Pair NO.5® Metal Couplers – Medium Centerset Shank
- (2) Pair #634 Centering Spring NO.5® Style
- (2) Pair #9 draft Gearboxes
- (2) #622 Knuckle Springs
It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.
#9 Plastic Draft Gearboxes & Lids Features:
| Material | – Insulated Plastic |
| Dimensions | – 29/64″L x 19/64″W x 7/64″H |

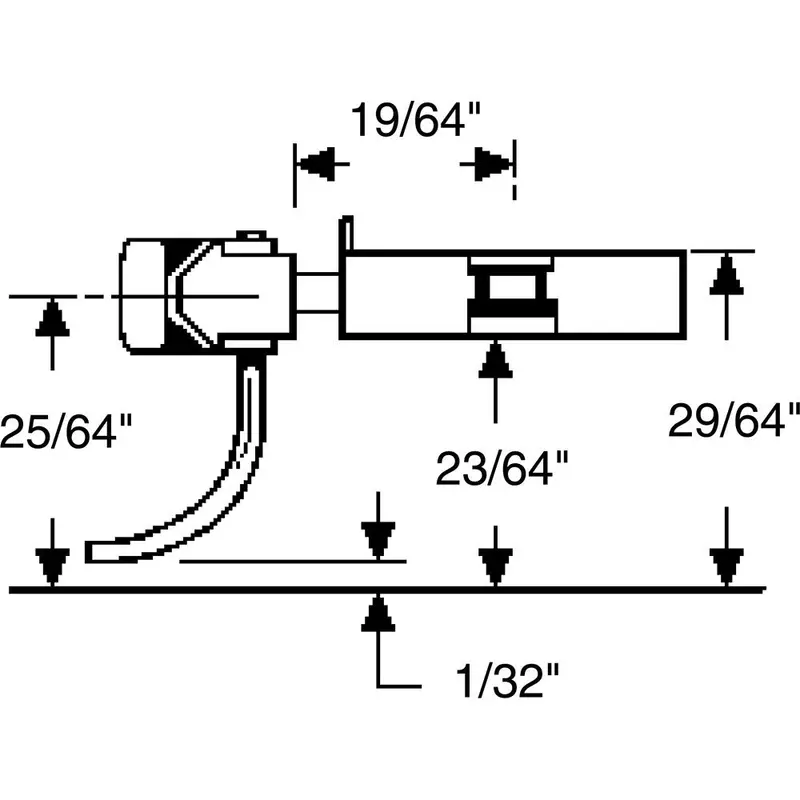

Mounting Specifications:
| Mounting Height – top of gearbox |
– 29/64″ |
| Mounting Height – bottom of gearbox |
– 21/64″ |
| Centerline | – 25/64″ |
| Trip Pin Height | – 1/32″ |
| Center Hole | – 0-48 Self-Tapping are the most commonly used. (Screw length will vary) |
| Side Holes | – 0-48 Self-Tapping or 0-80 Machine Screws. (Screw length will vary) |
