Description
153-25 HO Scale Bulk Pack – 25 pair #153 “Scale” Whisker® Metal Coupler – Short (1/4″) Centerset Shank – without gearboxes
The #153 “Scale” Short Coupler will work anywhere a #23, #33, & #143 Coupler will work.
The #153 “Scale” All Metal Self-Centering WHISKER® Coupler features a “Scale” Metal Coupler (a smaller head coupler which is more to scale and is patterned after the type ‘E” couplers) & Metal WHISKER® Centering Spring, insulated Draft Gear Box and Lid. The #153 Coupler may be mounted in Manufacturers cast-on coupler pockets or any of our HO-Scale draft gear boxes (except #233 30-series gear box). The coupler will couple and uncouple with other Kadee® HO and HOn3 couplers. The coupler has the same shank length as the #23, 33 or 43 coupler which will allow the modeler to remove the existing #23, 33 or 43 coupler and replace with the new smaller coupler. The #153 coupler is made of the same metal as the #43 for strength and rigidity.
Package Includes:
- (25) Pair #153 Scale Whisker® Metal Couplers – Short Centerset Shank
- (Extra) #625 Knuckle Springs
It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.
#153 Scale Whisker® Metal Coupler Features:
| Material | – Metal |

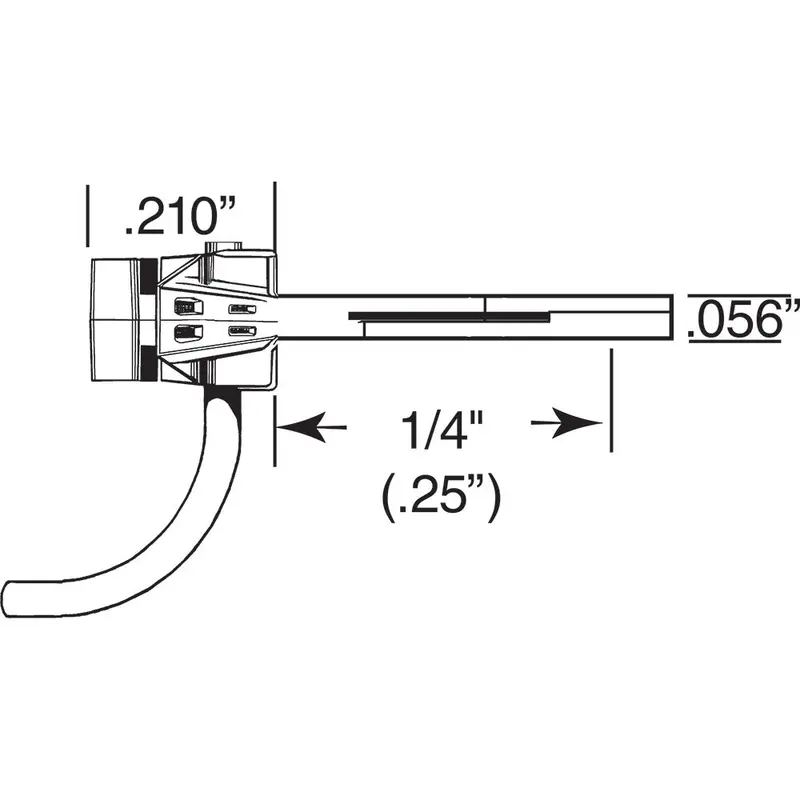

| Shank Length | – Short (1/4″) (center hole to back of coupler head) |
| Coupler Offset | – Centerset |
| Knuckle Spring | – #625 |
| Centering System | – Whisker® |
| Head | – “Scale” Head |
| Works In Place of | – #23, #33 (#143 in a #252 box), short centerset “clone” couplers |
| Works With | – #213, #232, #234, #242, #252, #262, manufacturer cast-on draft gearboxes |
Mounting Specifications:
| Mounting Height | – 25/64″ |
| Centerline | – 25/64″ |
| Trip Pin Height | – 1/32″ |
| Center Hole | – 2-56 Insulated Screws are the most commonly used. (Screw length will vary) |
