Description
The #119 coupler will work anywhere a NO.5®, #28, #38, #58, #118, #119, #148 & #158 Coupler will work.
The #119 Kadee® Magne-Matic® Coupler features a Metal Coupler, insulated #242 Draft Gear Box and Lid with center screw holes for mounting. Shelfs actually work. The #119 Coupler may be mounted with supplied #242 draft gear box or with Manufacturers cast-on coupler pockets.
It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gear box to avoid the possible electrical crossover or shorting that may cause damage. Use the provided insulated draft gear box .
Package Includes:
- (2) Pair SE Shelf Metal Whisker® Magne-Matic® Metal Coupler – Medium Centerset Shank
- (2) Pair #242 Snap-Together Gearboxes
- (2) #625 Knuckle Springs
Two pair per package.

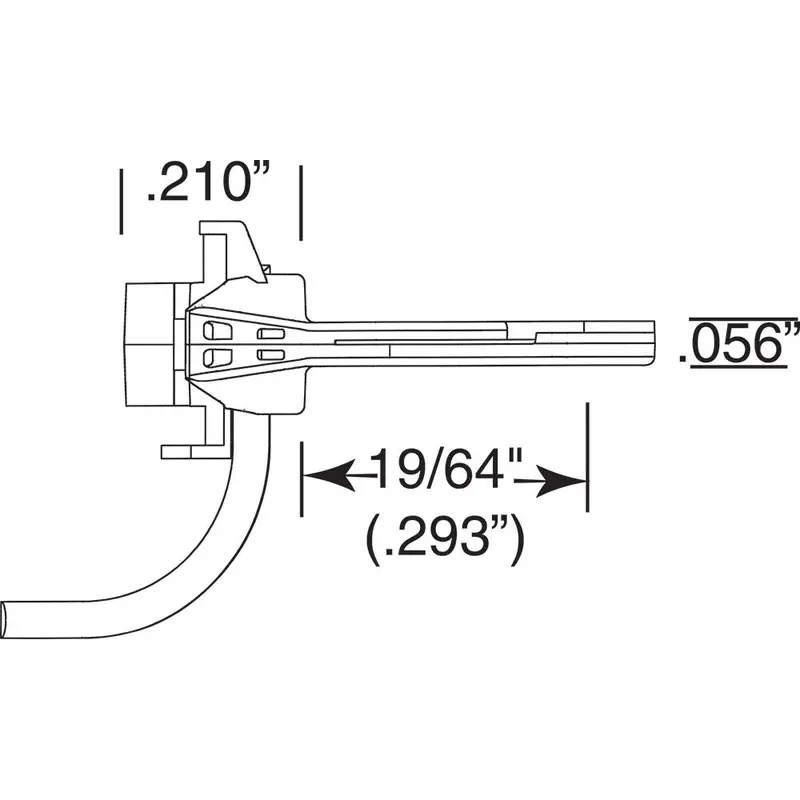

#119 Whisker® Metal Coupler Features:
| Material | – Metal |
| Shank Length | – Medium (9/32″) (center hole to back of coupler head) |
| Coupler Offset | – Centerset |
| Knuckle Spring | – #625 |
| Centering System | – Whisker® |
| Head | – SE Metal ShelfHead |
| Works In Place of | – NO.5®, #58, #28, #38 (#148 in a #252 box), #118, #119, #158, medium centerset “clone” couplers |
| Works With | – #213, #232, #234, #242, #252, #262, manufacturer cast-on draft gearboxes |
#242 Snap-Together Gearbox Features:
| Material | – Insulated Plastic |
| Lid Type | – Snap-Together |
| Dimensions | – 7/16″L x 5/16″W x 1/8″H |
| Works With | – NO.5®, #58, 20-Series and 40-Series, All Whisker® Couplers |
Mounting Specifications:
| Mounting Height | – 29/64″ |
| Centerline | – 25/64″ |
| Trip Pin Height | – 1/32″ |
| Center Hole | – 2-56 Insulated Screws are the most commonly used. (Screw length will vary) |
