Description
The #148 Whisker® Metal Coupler will work anywhere a NO.5® Coupler will work and is a direct replacement for most Bachmann On30 couplers & a direct replacement for most plastic Medium Centerset “clone” couplers.
This industry leading coupler features an all metal coupler head, shank, and Whisker® centering spring and comes complete with insulated draft gearbox and lid. The #148 Magne-Matic® Whisker® Metal Coupler may be mounted with the included #242 Snap-Together Gearbox or with other manufacturers cast-on coupler pockets.
It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage. Use the provided insulated gearbox or insulated #28 coupler.
Package Includes:
- (2) Pair #148 Whisker® Metal Couplers – Medium Centerset Shank
- (2) Pair #242 Snap-Together Gearboxes
- (2) #622 Knuckle Springs
#148 Whisker® Metal Coupler Features:
| Material | – Metal |
| Shank Length | – Medium (9/32″) (center hole to back of coupler head) |
| Coupler Offset | – Centerset |
| Knuckle Spring | – #622 |
| Centering System | – Whisker® |
| Head | – Standard Head |
| Works In Place of | – NO.5®, #58, #28, #38 (#148 in a #252 box), #118, #119, #158, & medium centerset “clone” couplers |
| Works With | – #213, #232, #234, #242, #252, #262, & most manufacturer cast-on coupler pockets* (molded-on gearbox). |
*Note: Some manufacturers now produce models with non-industry standard coupler pockets (molded-on gearbox). These shallower coupler pockets may require slight modification to the gearbox or coupler to function properly. If the model has a shallow molded-on gearbox, the top of the #148 Whisker® coupler shank may be filed thinner to fit the shallower cast-on coupler pockets.
#242 Snap-Together Gearbox Features:
| Material | – Insulated Plastic |
| Lid Type | – Snap-Together |
| Dimensions | – 7/16″L x 5/16″W x 1/8″H |
| Works With | – NO.5®, #58, 20-Series and 40-Series, All Whisker® Couplers |

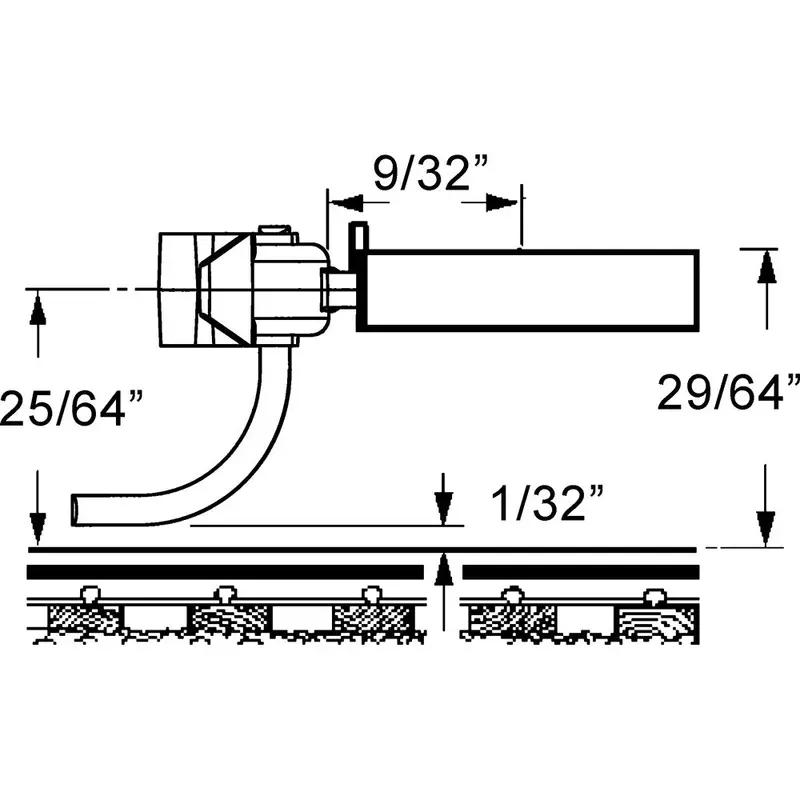

Mounting Specifications:
| Mounting Height | – 29/64″ |
| Centerline | – 25/64″ |
| Trip Pin Height | – 1/32″ |
| Center Hole | – 2-56 Insulated Screws are the most commonly used. (Screw length will vary) |
