Description
Features
- Constructed to provide a solid base for drilling
- The enclosed spidle assembly is supported by four permanently lubricated ball bearings for greater precision and accuracy
- Cast Iron head
- Large ground steel column for maximum head and table support
- Large quill allows greater accuracy
- 3-1/8″ stroke for deep hole applications
- Accurate depth stop for precice hole depths
- Table tilts 45 degree
- 5/8″ drill chuck and arbor
- Telescoping safety spindle guard
What’s in The Box

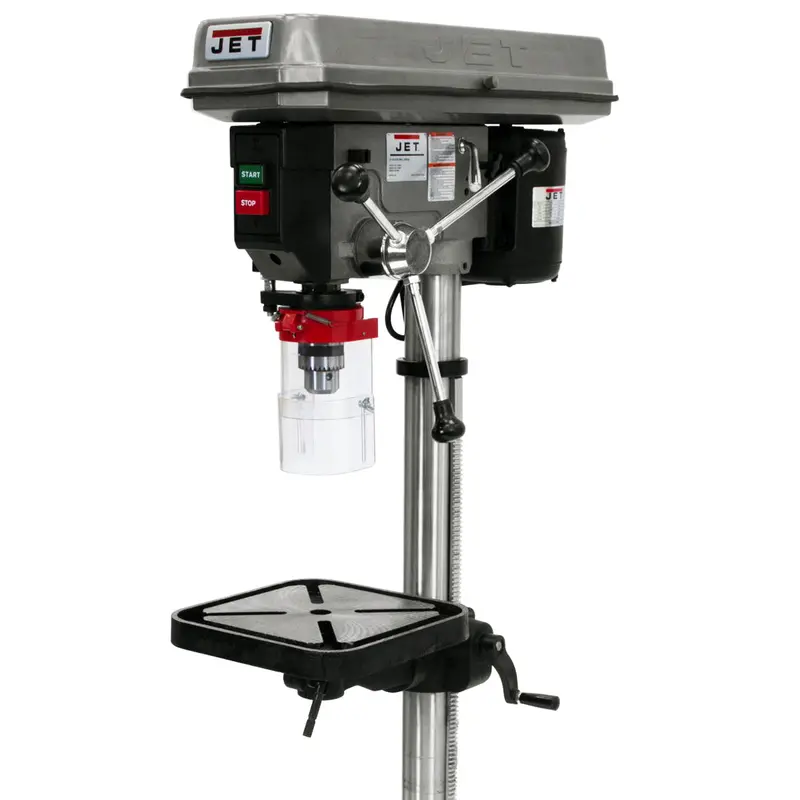

- JET J-2500, 15″ Floor Model Drill Press 115V 1PH
- Owner’s Manual
Warranty
- 2-Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| Model | IDP-22 |
| Sku | 354301 |
| Brand | Jewt |
| Style (Type) | Belt Drive |
| Drills to Center of Circle (in) | 22 |
| Drilling Capacity Cast Iron (in.) | 1-1/4 |
| Drilling Capacity Mild Steel (in.) | 1 |
| Tapping Capacity Mild Steel (in.) | 1 |
| Distance Column to Spindle (in.) | 10-7/8 |
| Number of Spindle Speeds | 12 |
| Range of Spindle Speeds (Rpm) | 175 – 3,050 |
| Column Diameter (in.) | 3-5/8 |
| Spindle Taper (in. x Tpi) | MT-3 |
| Spindle Travel (in.) | 4-13/16 |
| Spindle Distance to Base (in.) | 48-1/2 |
| Spindle Distance to Table (Max.) (in.) | 28 |
| Table Size (L x W) (in.) | 18-5/8 x 16-1/8 |
| T-Slots Number and Size (in.) | 2 and 5/8 |
| T-Slot Centers (in.) | 3/4 |
| Work Table Weight Capacity (lbs.) | 176 |
| Base Dimensions (in.) | 22-5/8 x 19-7/16 |
| Base Work Table (in.) | 21-1/2 x 18-5/16 |
| Base Slots Number and Size (in.) | 2 and 5/8 |
| Motor (Hp) | 3/4 |
| Voltage | 115/230 |
| Phase | Single |
| Weight (lbs.) | 364 |
