Description
Features
- Precision ground cast iron table
- Cast iron trunnions
- 3/8 in x 3/4 in T-slots and miter gauge
- 4 in dust port
- Power transfer: Poly-V serpentine belt
- Steel cabinet
What’s in The Box

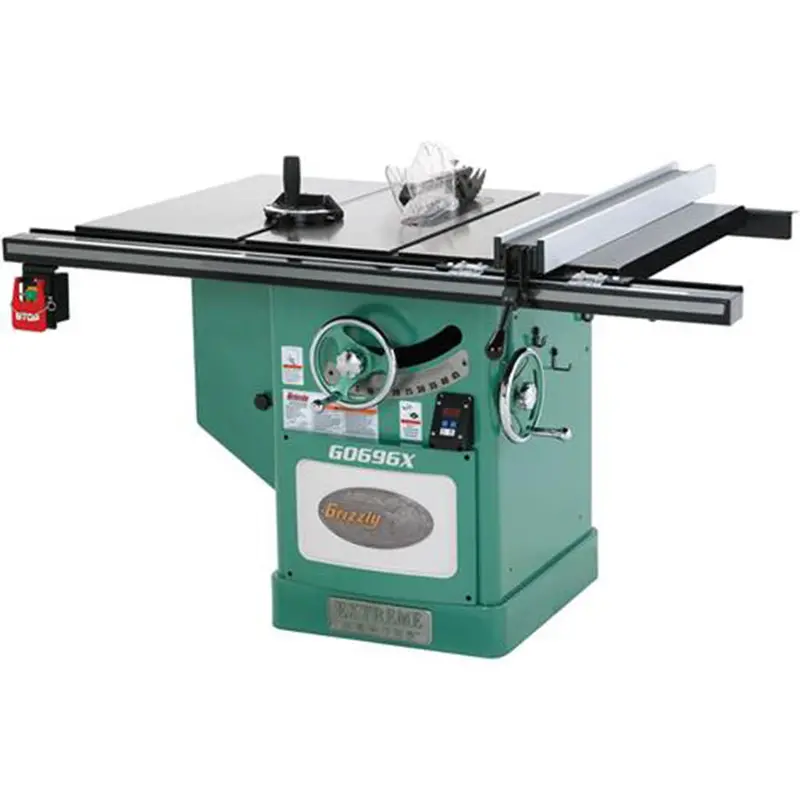

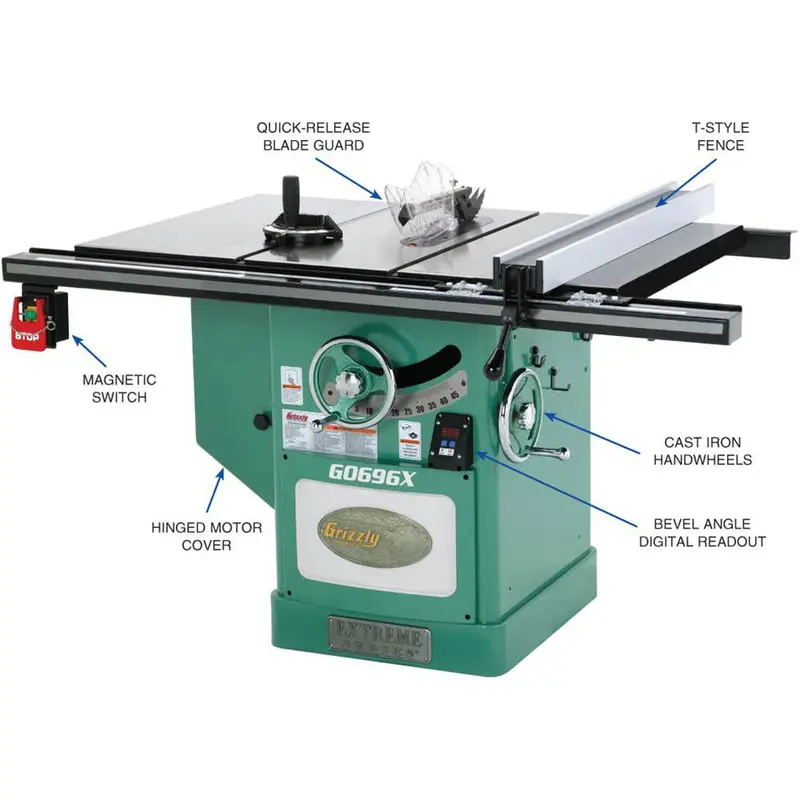

- 12 in 5 HP 220V Extreme Series Left Tilt Table Saw – G0696X
- Owner’s Manual
Warranty
- 1 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| SKU | G0696X |
| Brand | Grizzly |
| Motor | 5 HP, Single Phase |
| Amps | 18A |
| Blade Tilt | Left, 45 degrees |
| Table Height from Floor | 35-3/4 in |
| Table Size with Wings | 30-3/4 in x 48-1/4 in |
| Arbor Speed | 3600 RPM |
| Arbor Size | 1 in |
| Max Dado Width | 3/4 in |
| Max Depth of Cut at 90 degrees | 4 in |
| Max Depth of Cut at 45 degrees | 2-3/4 in |
| Max Rip Capacity | 36 in |
| Item Dimensions(inches) | 75 W x 44 D x 42-1/2 H |
| Weight | 756 lbs |
