Description
Features
- 2 hp motor runs on 110-volt power and will work almost any site.
- 1.5” maximum drilling capacity.
- Includes 29” x 8” milling-style table which expands the machine’s possible uses.
- Gear-driven head allows you to run tooling at the proper speed for each mill, drill or tap size available: 90, 210, 345, 670, 1180, 1970 rpm.
- Rigid base and very wide cast column adds to machine’s strength and eliminates flexing when milling or drilling at full capacity.
- Comes standard with coolant system, R8 spindle taper, and a flexible halogen light.
What’s in The Box

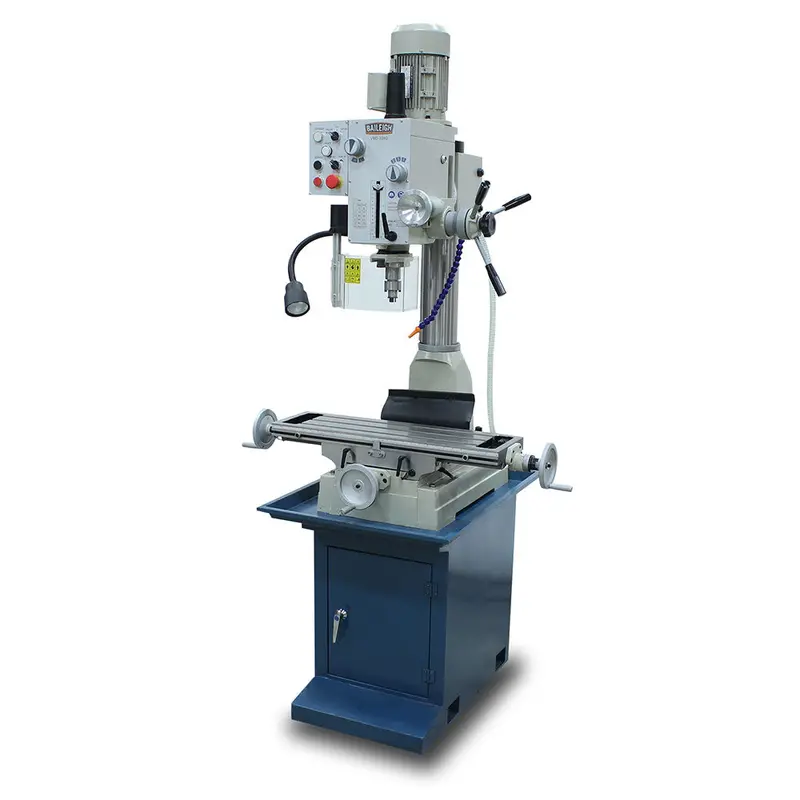

- VMD-828G – Vertical Mill Drill
- Owner’s Manual
Warranty
- 1 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| SKU | VMD-828G |
| Power | 110V |
| Spindle Speeds | 90, 210, 345, 670, 1180, 1970 RPM |
| Table Size | 28.75″ x 8.25″ |
| Motor | 2 hp |
| X Axis Travel | 19-1/2″ |
| Y Axis Travel | 9″ |
| Spindle Nose to Base | 16.14″ |
| Spindle Stroke | 4-3/4″ |
| Spindle Taper | R8 |
| T Slots | .550″ |
| Coolant Pump | 1/8 hp |
| Drill Capacity | 1.5″ |
| Spindle Travel | 4.75″ |
| Shipping Dimensions (Inches) | 60x44x51 |
| Weight | 815 lbs |
