Description
Description

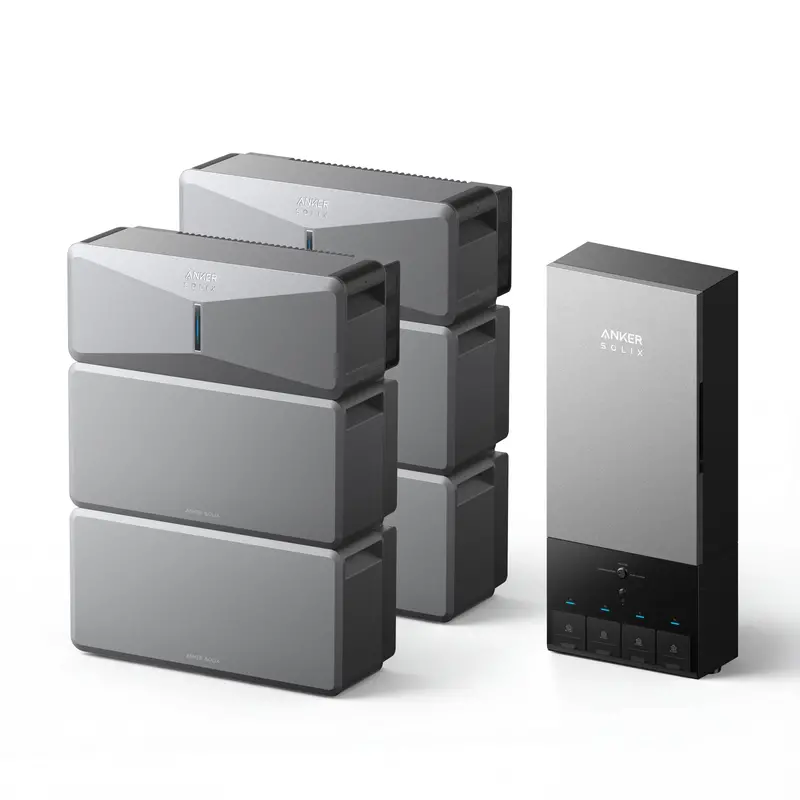

Anker SOLIX B17E1141-85 B6000 Battery Module for E10 Whole Home Backup System | 12kWh LiFePO4 Battery
Features
- Expand Your Backup Capacity
- Add B6000 Battery Module to extend E10 from 6kWh to 90kWh total. Each 6kWh module adds 1 day of essential backup. Stack up to 5 modules per E10 (30kWh max). Triple systems reach 90kWh for 15-day backup.
- Unlock Higher Power Output
- 2+ Battery Packs enable 10kW Turbo for 90 minutes. 4 Packs unlock 20kW Turbo with dual E10 systems. 6 Packs deliver maximum 30kW Turbo with triple systems—handle multiple heavy appliances simultaneously.
- Triple-Certified Fire Safety
- UL 9540A, NEMA 4, and IP66 certified. Military-grade metal shells with isolated cells and pressure-relief valves contain fires in any weather.
- Automotive-Grade LFP Cells
- 10-year lifespan, 4,000+ charge cycles, -4°F to 131°F operating range. EV-class durability withstands extreme weather conditions, 5-Year Warranty.
- 41-Point Smart BMS Protection
- Monitors voltage, temperature, and current in real time to prevent overcharge, over-discharge, and thermal runaway.
What’s in The Box
- Anker SOLIX B6000 Power Module + 2x Battery
Warranty
Specifications
| SKU | B17E1141-85 |
| Product Name | Anker SOLIX E10 Battery Module |
| Model | B17E1141-85 |
| Performance Specification | |
| Battery Type | Li-ion (LFP) |
| Capacity | 6144 Wh |
| Battery Terminal Voltage Range | 380~450 Vdc |
| Maximum Charge / Discharge Power | 6,000/8,000 W |
| Maximum Charge / Discharge Current | 15.8/21.1 A |
| Others | |
| Installation Option | Floor Mounting Or Wall Mounting |
| Dimensions (W × H × D) | 26.4″ x 12.7″ x 11.1″ (670 x 322 x 281 mm) |
| Weight | 130 lbs (59 kg) |
| Enclosure Type | NEMA 4X (IP66) |
| Operating Temperature | -4 °F to 131 °F (-20~55 °C) |
| Warranty | 5 Years |
| Certification Information | ANSI/CAN/UL 1973, UL 60730-1:2016 Annex H, ANSI/CAN/UL 9540, ANSI/CAN/UL9540A, ANSI/CAN/UL 2743, UL 1778, CSA C22.2 No. 107.3-14, UL 1012, CSA C22.2 No. 107.1, 47 CFR Part 15, Subpart B, ICES-003, CP65, TSCA, PFAS, UN38.3, Energy Commission’s Solar Equipment Lists |
| What’s in the Box | Accessories = Screw(M5 18 mm) ×2 |
| Documents | User Manual, Safety |
